The plc controlled eps foam machine is one of the most popular eps foam machines. Constant improvements based on market feedback, double hoppers for fast feeding and easy maintenance, brand PLC and touch screen for automatic and safe operation in use.Equipped with galvanized machine legs with total height 1.6m, and strong platform to simplify the installation time.

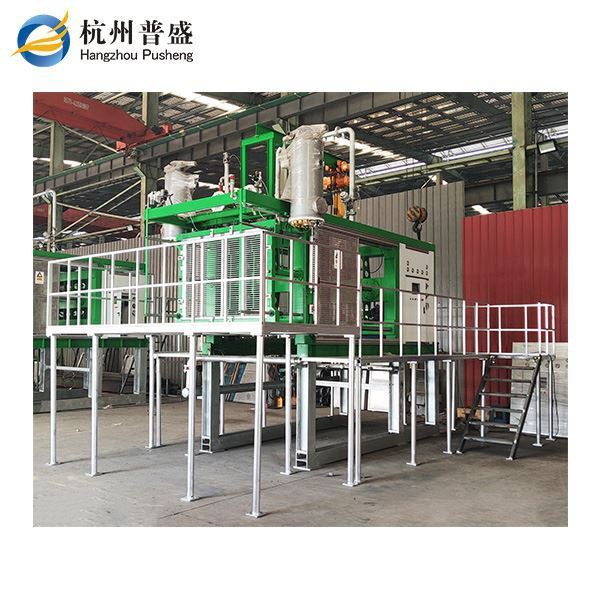

Customized eps foam machine PSZ1750 with working platform and legs:
Technical data for eps foam machine:
Item | Unit | PSZ1750JN | PSZ1800JN | |
Mould Dimension | mm | 1750×1450 | 1800×1600 | |
Product Dimension | mm | 1550×1200 ×330 | 1610×1400 ×350 | |
Minimum Mould Thickness | mm | 220 | 220 | |
Stroke | mm | 210-1460 | 210-1460 | |
Speed | mm/sec | 210 | 210 | |
Mounting Interface | Raw material connector | / | DN50 | DN50 |
Steam | / | DN100 | DN100 | |
Compressed air | / | DN50 | DN50 | |
Cooling water | / | DN80 | DN80 | |
Drainage | / | DN150 | DN150 | |
Consumption | Steam | Kg/cycle | 7~10 | 7~11 |
Compressed air | m3/cycle | 1.5 | 1.5 | |
Cooling water | Kg/cycle | 60-190 | 80-200 | |
Pressure request | Steam | MPa | 0.6 | 0.6 |
Compressed air | MPa | 0.5 | 0.5 | |
Cooling water | MPa | 0.4 | 0.4 | |
Vacuum Pump Capacity | m3/h | 280 | 280 | |
Connected Load | Kw | 16.5 | 16.5 | |
Overall Dimension | mm | 5000×3400 ×4000 | 5000×3500 ×4000 | |
Machine Weight | Kg | 7500 | 8000 | |
FAQ:
1. If any quality problem, how can you settle it for us?
If any breakage or defect products were found, you must take the pictures from the original carton. All the claims must be presented within 7 working days after discharging the container. This date is subject to the arrival time of container. We will advise you to certify the claim by third party, or we can accept the claim from the samples or pictures you present, finally we will completely compensate all your loss.
2. How to receive a price quotaion in the shortest time?
When you send us an enquiry, please kindly make sure all the details, such as model no, product size, and lenth, color, order quantity. We will send you quota with complete details soon.
3.Can we combine many items assorted in one container in my first order?
Yes! But all individual item should meet the MOQ
